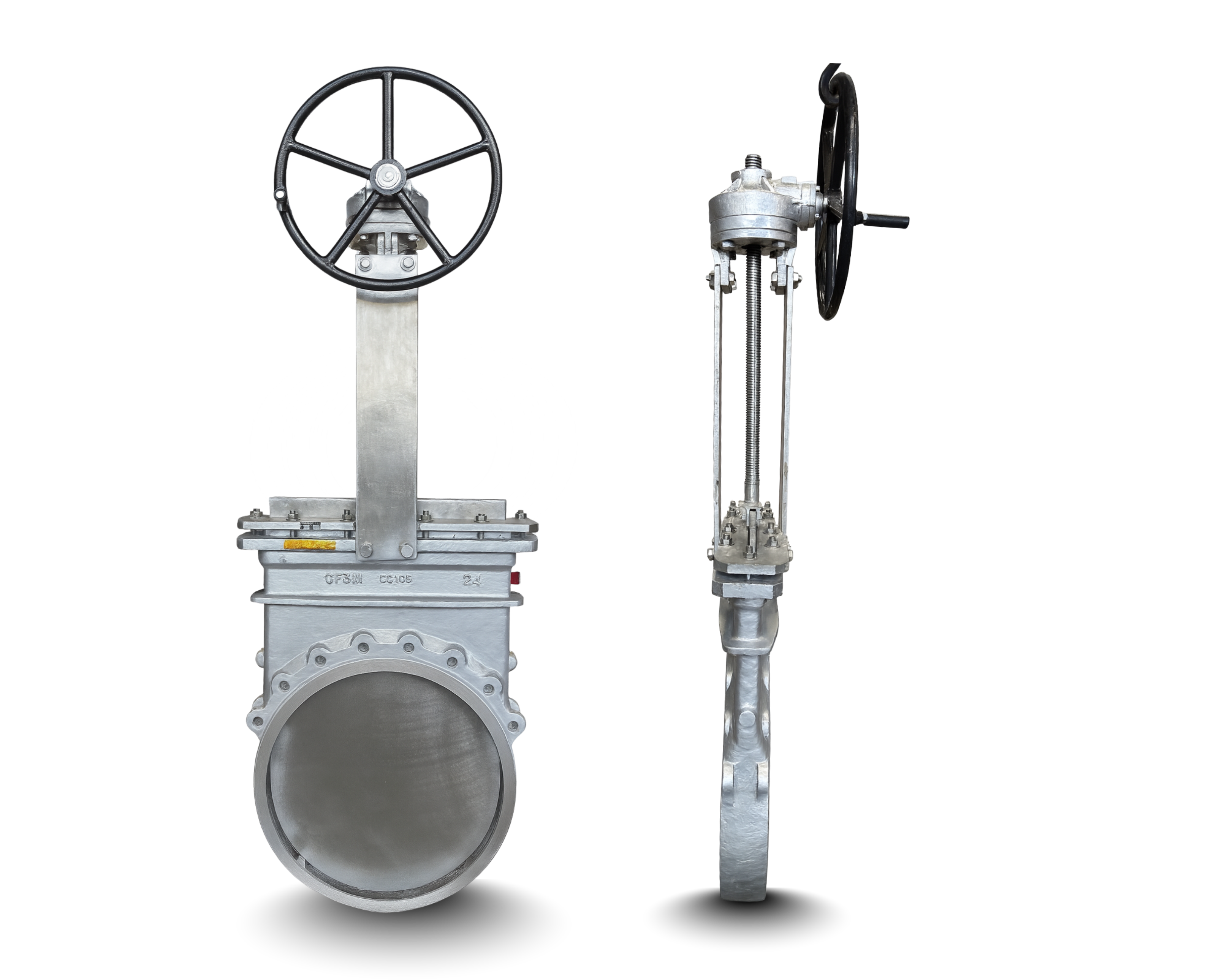

Knife Edge Gate Valves
| Parameter | Specification |
|---|---|
| Valve Type | Knife Edge / Knife Gate Valve |
| Size Range | DN 50 to DN 1200 (2” to 48”) |
| Pressure Rating | PN 10 / PN 16 / Class 150 |
| Design Standard | MSS SP-81 / Manufacturer Standard |
| End Connections | Wafer / Lugged / Flanged |
| Operation | Manual / Pneumatic / Electric / Hydraulic |
| Sealing Options | Soft Seat / Metal Seat |
Overview
LIBRA Valves India Pvt. Ltd. manufactures high-performance Knife Edge Gate Valves engineered for demanding isolation applications involving slurry, viscous fluids, abrasive media, and solid-laden flow conditions.
In severe-service pipelines where conventional valves struggle with clogging, wear, and sealing reliability, LIBRA Knife Edge Gate Valves provide a robust and dependable isolation solution. These valves feature a precision-machined, sharp-edged gate specifically designed to cut through dense media, suspended solids, fibers, and particulate-laden fluids, ensuring consistent operation even under challenging process conditions.
Designed for rugged industrial environments, LIBRA Knife Edge Gate Valves deliver:
• Reliable shut-off performance
• Reduced risk of blockage and media build-up
• Excellent abrasion and wear resistance
• Smooth gate operation
• Extended valve service life
• Low maintenance requirements
The valve’s streamlined flow path minimizes pressure drop while the self-cleaning gate action enhances operational reliability by preventing solid accumulation.
Design Highlights
LIBRA Knife Edge Gate Valves are engineered for rugged performance, reliable isolation, and long-term durability in severe-service applications involving slurry, abrasive, viscous, and solid-laden media.
- Sharp Knife-Edge Gate Precision-machined gate with a hardened cutting edge designed to slice through dense slurry, suspended solids, fibrous media, and viscous fluids, preventing blockage and ensuring dependable shut-off.
- Bi-Directional / Uni-Directional Sealing Options Available with sealing configurations optimized for slurry isolation, flow direction control, and application-specific pressure conditions.
- Minimal Pressure Drop Design Streamlined full-port flow path reduces turbulence and energy loss, maintaining efficient system performance.
- Self-Cleaning Gate Action Gate movement naturally clears solids from seating surfaces, minimizing media accumulation and operational failure risk.
- Heavy-Duty Body Construction Robust valve body engineered to withstand abrasion, vibration, pressure fluctuations, and harsh industrial environments.
- Abrasion-Resistant Seats & Liners Replaceable seats and liners made from EPDM, NBR, PTFE, polyurethane, or metal, extending valve life in abrasive services.
- Bubble-Tight Shut-Off (Soft Seated) Elastomeric seat designs ensure zero-leakage sealing, even in slurry and particulate media.
- Metal-Seated Option (Severe Service) Designed for high temperature, abrasive solids, and erosive media.
- Blowout-Proof Stem Design Safety-engineered stem retention prevents ejection under pressure, enhancing operator safety and mechanical reliability.
- Precision Stem & Packing System Ensures smooth operation with reduced friction and minimized fugitive emissions.
- Compact Wafer / Lugged Design Space-saving construction suitable for tight piping layouts and large-diameter installations.
- Automation-Ready Configuration Compatible with pneumatic, electric, and hydraulic actuators, enabling remote and automated operation.
Versatile Solutions
- LIBRA Knife Edge Gate Valves are engineered to provide maximum flexibility, application-specific adaptability, and dependable performance across a wide range of slurry, abrasive, and solid-handling services. To meet diverse process requirements, these valves are available with both soft-seated and metal-seated sealing configurations, enabling reliable shut-off in applications ranging from general slurry service to high-temperature and severe abrasive environments.
- The valves can be supplied with multiple gate design options, including hardened, coated, and polished gates, enhancing resistance to wear, corrosion, and media adhesion. A variety of end connection styles such as wafer, lugged, and flanged designs ensure seamless compatibility with different piping standards and installation constraints.
- LIBRA Knife Edge Gate Valves support a full spectrum of actuation solutions, including manual, pneumatic, electric, and hydraulic operation, enabling suitability for both local control and automated systems. Depending on the service conditions, valves can be equipped with specialized liner and seat materials such as EPDM, NBR, PTFE, polyurethane, and metal, ensuring optimal sealing performance and extended service life.
- To address demanding media and environmental conditions, LIBRA valves are available in a broad selection of body materials, including Cast Iron (CI), Carbon Steel (CS), Stainless Steel (SS), Duplex, and other corrosion-resistant alloys. Optional corrosion- and abrasion-resistant coatings further enhance durability in erosive slurry, chemical, ash handling, and bulk solids applications.
- High-cycle designs are available for installations involving frequent operation or automated duty, ensuring stable performance, smooth gate travel, and reduced wear over extended service periods. With this wide configuration capability, LIBRA Knife Edge Gate Valves deliver optimized solutions for mining, ash handling, wastewater treatment, pulp & paper, cement, steel, and severe-service process industries.
Beyond Standards
LIBRA Knife Edge Gate Valves are engineered not only to meet industrial requirements but to exceed severe-service performance expectations, delivering superior reliability, durability, and operational stability in the most demanding applications.
- Superior Slurry Handling Capability Designed specifically for abrasive, viscous, and solid-laden media, ensuring smooth gate travel, dependable isolation, and resistance to clogging.
- Enhanced Wear Resistance Hardened gates, abrasion-resistant seats, and protective liners significantly reduce erosion, galling, and mechanical degradation, extending valve lifespan.
- Reduced Media Build-Up Self-cleaning gate action and optimized internal geometry prevent solid accumulation, scaling, and blockage, ensuring consistent performance.
- Extended Seat & Gate Life Replaceable seat and liner designs, combined with wear-resistant materials, deliver longer service intervals and reduced maintenance frequency.
- Reliable Shut-Off in Abrasive Media Precision-machined sealing surfaces maintain tight shut-off performance, even in slurry and particulate-heavy conditions.
- Low Maintenance Construction Simplified internal design minimizes moving components, reducing maintenance complexity and downtime risk.
- Precision Machined Gate & Guides CNC-machined gates and guiding systems ensure accurate alignment, smooth operation, reduced vibration, and consistent sealing integrity.
- Severe-Service Durability Engineered for demanding conditions including:
- High Solids Content
- Abrasive Slurry
- Fibrous Media
- Powder & Bulk Solids
- Ash Handling Systems
- Optimized Flow Path Stability Minimizes turbulence and mechanical stress on seating surfaces.
- Improved Operational Reliability
- Resistance to Abrasion & Corrosion
- Reduced Leakage & Failure Risk
- High Cycle Performance
- Custom Engineered Designs Tailored solutions available for special sizes, pressure ratings, materials, coatings, and application-specific requirements.
Features That Add Value
LIBRA Knife Edge Gate Valves are engineered to deliver long-term operational efficiency, enhanced reliability, and reduced lifecycle costs in demanding slurry and severe-service applications.
- Reliable Isolation in Slurry Service Designed to provide consistent, bubble-tight shut-off even in abrasive, viscous, and solid-laden media, ensuring dependable process isolation.
- Reduced Clogging & Blockage Sharp knife-edge gate and self-cleaning action minimize media build-up, jamming, and obstruction, improving system uptime.
- Extended Valve Service Life Wear-resistant gates, abrasion-resistant seats, and replaceable liners significantly reduce erosion and mechanical wear.
- Lower Maintenance Cost Simplified internal design and durable materials reduce maintenance frequency, spare part replacement, and downtime.
- Smooth Gate Operation Precision-machined stem and guiding systems ensure low-friction movement and stable gate travel, even under heavy slurry loads.
- Excellent Abrasion Resistance Specialized seat, liner, and coating options enhance resistance to erosive and abrasive media, extending sealing performance.
- Compact Installation Footprint Space-saving wafer and lugged designs allow easy integration into tight piping layouts and large-diameter systems.
- Automation Compatibility Available with pneumatic, electric, and hydraulic actuators, enabling remote operation and process automation.
- High Operational Reliability
- Reduced Leakage Risk
- Improved Process Stability
- Enhanced Equipment Protection
- Resistance to Harsh Environments
- High Cycle Durability
- Replaceable Seat & Liner Design
- Cost-Effective Lifecycle
Certifications & Compliance
Designed and manufactured in accordance with:
- MSS SP-81
- ASME B16.34 (Where Applicable)
- API 598 (Testing)
- ISO 9001:2015
- NACE MR0175 (Optional)
- Third-Party Inspection (On Request)
Applications
LIBRA Knife Edge Gate Valves are widely used in:
- Slurry & Abrasive Media Lines
- Ash Handling Systems
- Wastewater & Effluent Treatment
- Pulp & Paper Stock Lines
- Mining & Mineral Processing
- Powder & Bulk Solids Handling
- Chemical Sludge Systems
- Cement & Fly Ash Lines
Optional Features
- Hardened / Coated Gate
- Replaceable Seat / Liner
- Flush Ports
- Position Indicators
- Locking Arrangement
- Extended Stem
- High Temperature Design
- Pneumatic / Electric Actuation
- Special Coatings / Linings
